Type : NYRGY / AYRGY / NYRGY / AYRGY

Voltage : 600 / 1000 V (permissible Service Voltage : 720 / 1200 V)

Special Type

  • NYRGY(FP) / NYRGY(FG)
  • NYRGY-FR / NAYRGY-FR
  • NYRGY-FRLS / NAYRGY-FRLS
  • NYRGY-LSZH / NAYRGY-LSZH
  • NYRGY-HRFR-150°C

Specifications / Rating

ASTM: B-3
BDS IEC: 60228&60502-1
VDE: 0271
IEC: 60331&584
IS: 1554-1&BS: 6346

Applications

  • Indoor
  • Outdoor
  • Underground
  • In water
  • Power plant
  • Switch gear
  • Generator
  • Industrial

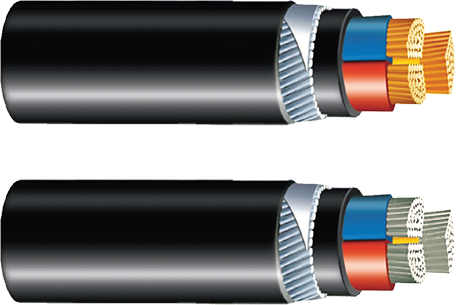

Construction : Annealed Copper or Aluminium Conductor / PVC Insulation / PVC inner sheath / Round Galv, Steel wire armoured / PVC outer Sheath

tecnical data
Cross Sectional Area No. & Approx. Diameter of wire Cu/Al Nominal Thickness of Insulation Diameter of round armoured wire Nominal Thickness of Sheath Overall diameter (approx) Approx Weight of Cable Max. DC resist. of conductor at 20°C Current rating at 30°C in ground Current rating at 35°C in air
Cu Al Cu Al Cu Al Cu Al
Core x mm2 No./mm mm mm mm mm Kg/Km Kg/Km ohm/km ohm/km amps amps amps amps
3x25rm 7/2.14 1.2 1.6 1.8 28.6 1755 1276 0.727 1.2 110 86 98 76
3x35sm 19 wire 1.2 1.6 1.9 27.8 2080 1415 0.524 0.868 130 101 120 93
3x50sm 19 wire 1.4 1.6 2.0 30.7 2650 1698 0.387 0.641 155 120 150 116
3x70sm 19 wire 1.4 2.0 2.1 34.6 3700 2362 0.268 0.443 190 148 190 148
3x95sm 19 wire 1.6 2.0 2.3 39.0 4750 2943 0.193 0.32 225 175 230 179
3x120sm 37 wire 1.6 2.0 2.4 42.1 5660 3382 0.153 0.253 260 202 270 210
3x150sm 37 wire 1.8 2.5 2.5 47.3 7265 4413 0.124 0.206 295 229 305 237
3x185sm 37 wire 2.0 2.5 2.7 50.5 8660 5149 0.0991 0.164 330 257 350 272
3x240sm 37 / 61 wire 2.2 2.5 2.9 57.0 10819 6145 0.0754 0.125 385 299 410 318
3x300sm 61 wire 2.4 2.5 3.1 61.0 12993 7104 0.0601 0.100 425 329 470 364
Note: As per customer requirement we shall provide Fire proof/resistant cables (25 mm2 to 300 mm2) which can resist fire temperature of 750C with circuit integrity. Also we shall provide Fiber glass wrapping PVC insulated cables (35 mm2 to 630 mm2) whose max. operating conductor temperature is 155°C without short circuit & Insulation life is almost double.
